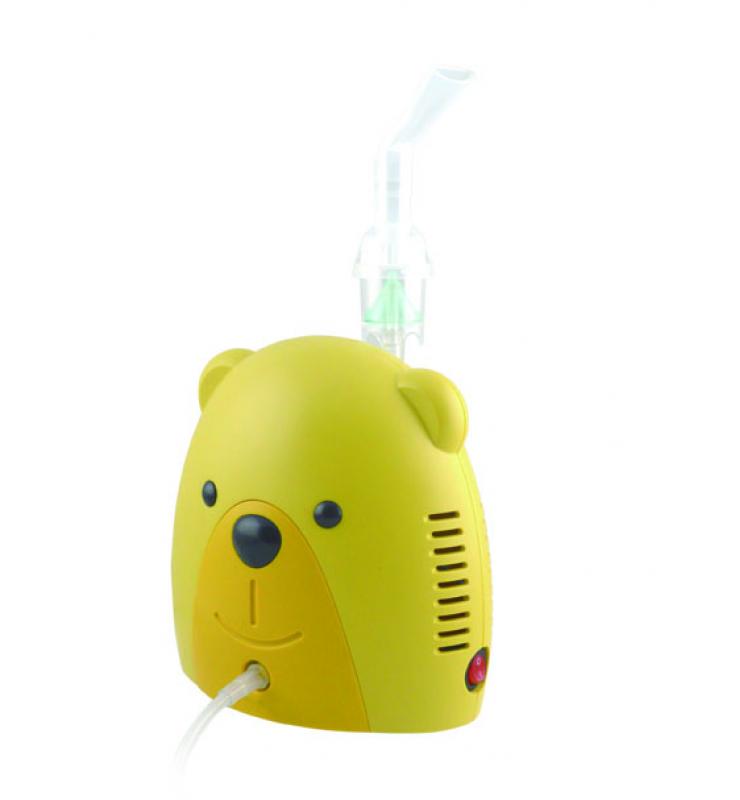

A500LW09 is developed for the treatment of asthma, allergies and the other respiratory disorders. When the air enters the nebulizer, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled


Features:
1. Use hign quality motor, guarantee long time continous works.
2. Dual safety fuse on motor and power cord for more safety.
3. Powerful and silent A500LW05 piston type compressor ( 0.36 Mpa pressure).
4. Produces a high–quality respiratory aerosol with extremely low residual.
5. Sound Level ≤ 55dB (1 meter away from A500LW05).
6. Built-in nebulizer holder.
Standard Accessory:
Nebulizer bottle; Air tube; Mouth-piece; Filter (5pcs); Adult mask; Child mask
Optional Accessory
Baby pacifier inhaler, Bag


Specification:
Power : 100V@60HZ, 120V@60HZ,230V@50HZ, 220V@60HZ
Power Consumption:  180 VA Max
Sound Level:  lower than 55 dB (1 meter away from A500LW09)
Compressor Pressure Range:  29 to 52 Psi / 200 to 360 Kpa / 2 to 3.6 bar
Operating Pressure Range : 13 to 19 Psi / 90 to 130 Kpa / 0.9 to 1.3 bar
Liter Flow Range : 4.0 to 7.0 Lpm
Operating Temperature Range:  10°C to 40°C (50°F to 104°F)
Operating Humidity Range : 10 to 90% RH
Storage Temperature Range : -25°C to70°C (-13°Fto158°F)
Storage Humidity Range : 10 to 95% RH
Medication Capacity : 6ml / 10ml (cc)
Partical Size:  0.5-10 μm
MMAD:  1.3 to 1.5μm / 3.0 to 4.0 μm
Average Nebulization Rate:  faster than 0.3ml/min (2% saline solution)
Dimension(L×W×H):  185mm×110mm×180mm
Net Weight : 1.5kg
