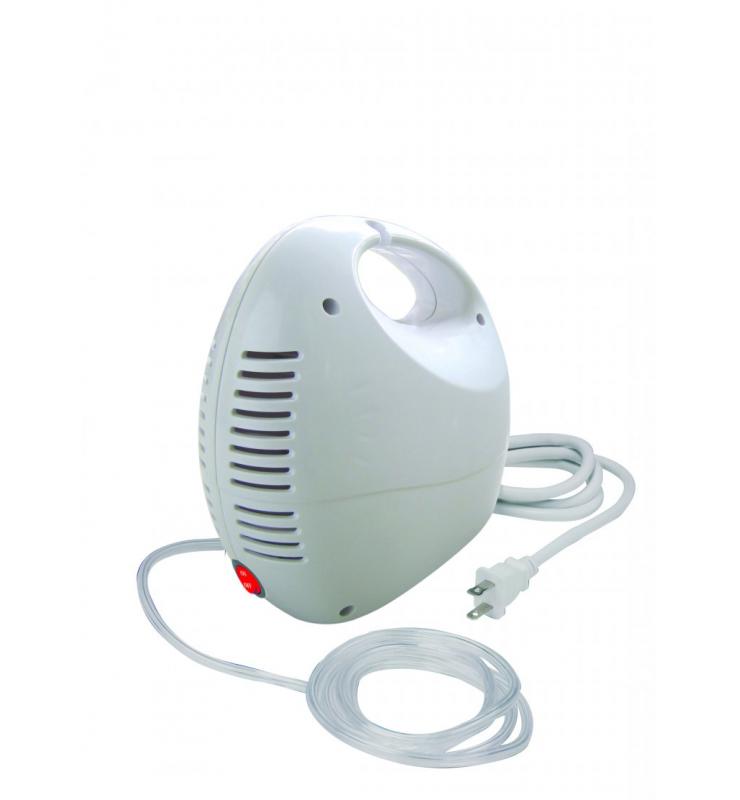

A500LW08 is developed for the treatment of asthma, allergies and the other respiratory disorders. When the air enters the nebulizer, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled.

Features:
1. Use hign quality motor, guarantee long time continous works.
2. Dual safety fuse on motor and power cord for more safety.
3. Powerful and silent A500LW05 piston type compressor ( 0.36 Mpa pressure).
4. Produces a high–quality respiratory aerosol with extremely low residual.
5. Sound Level ≤ 55dB (1 meter away from A500LW11).
6. Built-in nebulizer holder.
Standard Accessory:
Nebulizer bottle; Air tube; Mouth-piece; Filter (5pcs); Adult mask; Child mask
Optional Accessory
Baby pacifier inhaler, Bag

Specifications:

Power

100V@60HZ,120V@60HZ,230V@50HZ,220V@60HZ

Power Consumption

180 VA Max

Sound Level

lower than 55 dB (1 meter away from A500LW11)

Compressor Pressure Range

29 to 52 Psi / 200 to 360 Kpa / 2 to 3.6 bar

Operating Pressure Range

10 to 16 Psi / 70 to 120 Kpa / 0.7 to 1.2 bar

Liter Flow Range

5.0 to 8.0 Lpm

Operating Temperature Range

10°C to 40°C (50°F to 104°F)

Operating Humidity Range

10 to 90% RH

Storage Temperature Range

-25°C to70°C (-13°Fto158°F)

Storage Humidity Range

10 to 95% RH

Medication Capacity

6ml / 10ml (cc)

Partical Size

0.5-10 μm

MMAD

1.3 to 1.5μm / 3.0 to 4.0 μm

Average Nebulization Rate

faster than 0.2ml/min (2% saline solution)

Dimension(L×W×H)

188mm×188mm×106mm

Net Weight

1.5kg
