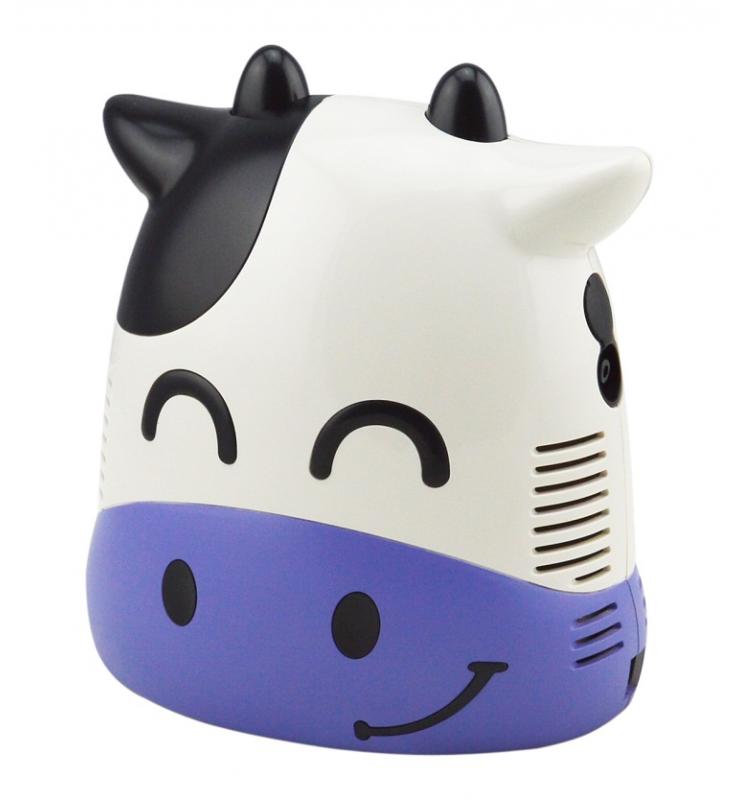

A500LW07 compressor nebulizer is developed for the treatment of asthma, allergies and the other respiratory disorders. When the air enters the nebulizer, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled.
Features
Use hign quality motor, guarantee long time continous works.
Dual safety fuse on motor and power cord for more safety.
Powerful and silent piston type compressor.
Produces a high–quality respiratory aerosol with extremely low residual.
Sound Level ≤ 55dB (1 meter away from A500LW07).
Built-in nebulizer holder.
Power | 100V@60HZ,120V@60HZ,230V@50HZ,220V@60HZ |
Power Consumption | 180 VA Max |
Sound Level | ≦55 dB (1 meter away from A500LW07) |
Compressor Pressure Range | 29 to 52 Psi / 200 to 360 Kpa / 2 to 3.6 bar |
Operating Pressure Range | 10 to 16 Psi / 70 to 120 Kpa / 0.7 to 1.2 bar |
Liter Flow Range | 5.0 to 8.0 Lpm |
Operating Temperature Range | 10℃ to 40℃ (50℉ to 104℉) |
Operating Humidity Range | 10 to 90% RH |
Storage Temperature Range | -25℃ to70℃ (-13℉to158℉) |
Storage Humidity Range | 10 to 95% RH |
Medication Capacity | 6ml / 10ml (cc) |
Partical Size | 0.5-10 μm |
MMAD | 1.3 to 1.5 μm / 3.4 to 4.0 μm |
Average Nebulization Rate | ≥0.2ml/min (2% saline solution) |
Standard Accessory | Nebulizer, Nebulizer bottle , Air Tube, Mounth-Piece, Filter(5pcs) , Adult mask，Child mask |
Optional Accessory | Baby pacifier inhaler, Nose piece. |
Dimension(L×W×H) | 194 mm×176 mm×126mm |
Net Weight | 1.5kg |
Package Dimension(L×W×H) | 245 mm×155 mm×220mm |
Gross Weight | 1.8 kg |
