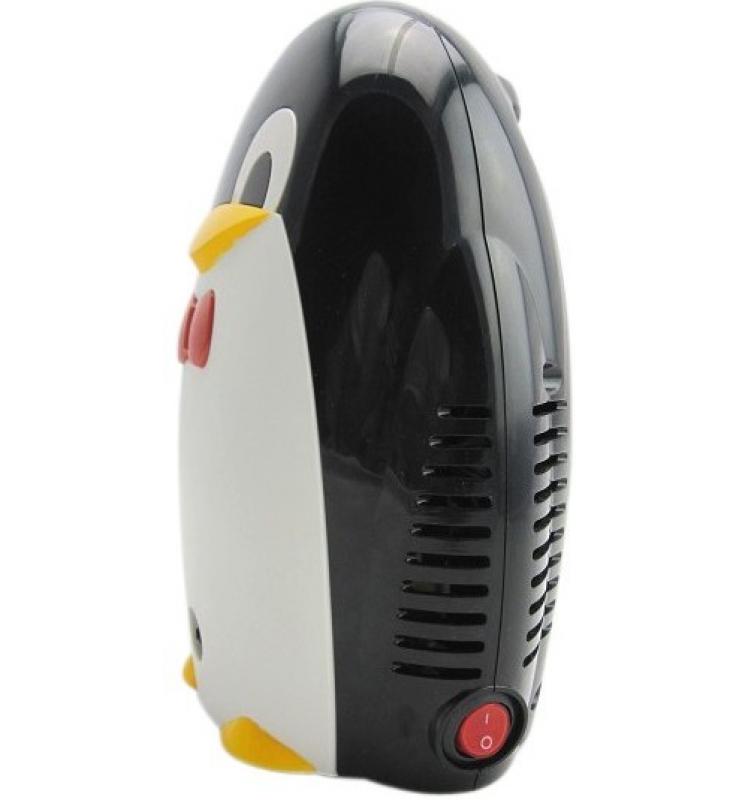

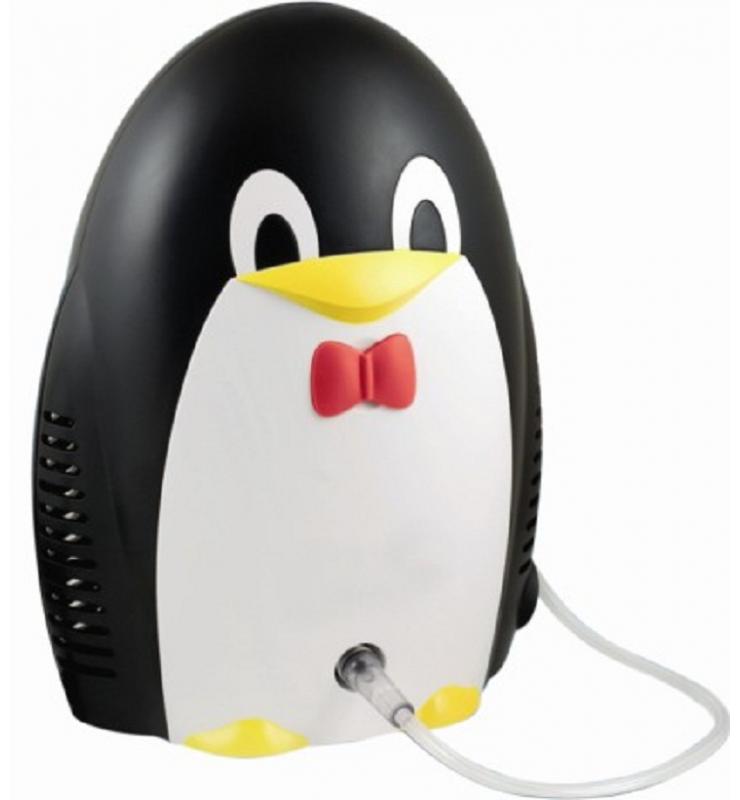

A500LW05 compressor nebulizer is developed for the treatment of asthma, allergies and the other respiratory disorders. When the air enters the nebulizer, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled.

Features
Use hign quality motor, guarantee long time continous works.
Dual safety fuse on motor and power cord for more safety.
Powerful and silent piston type compressor ( 0.36 Mpa pressure).
Produces a high–quality respiratory aerosol with extremely low residual.
Sound Level ≤ 55dB (1 meter away from A500LW05).
Built-in nebulizer holder.

Specifications:

Power

100V@60HZ,120V@60HZ,230V@50HZ,220V@60HZ

Power Consumption

180 VA Max

Sound Level

55 dB (1 meter away from A500LW05)

Compressor Pressure Range

29 to 52 Psi / 200 to 360 Kpa / 2 to 3.6 bar

Operating Pressure Range

10 to 16 Psi / 70 to 120 Kpa / 0.7 to 1.2 bar

Liter Flow Range

5.0 to 8.0 Lpm

Operating Temperature Range

10 to 40(50to 104)

Operating Humidity Range

10 to 90% RH

Storage Temperature Range

-25 to70(-13to158)

Storage Humidity Range

10 to 95% RH

Medication Capacity

6ml / 10ml (cc)

Partical Size

0.5-10 μm

MMAD

1.3 to 1.5 μm / 3.4 to 4.0 μm

Average Nebulization Rate

≥0.2ml/min (2% saline solution)

Standard Accessory

Nebulizer, Nebulizer bottle , Air Tube, Mounth-Piece, Filter(5pcs) , Adult maskChild mask

Optional Accessory

Baby pacifier inhaler, Nose piece.

Dimension(L×W×H)

178 mm×120 mm×234 mm

Net Weight

1.5 kg

Package Dimension(L×W×H)

210 mm×145 mm×255mm

Gross Weight

1.8 kg
