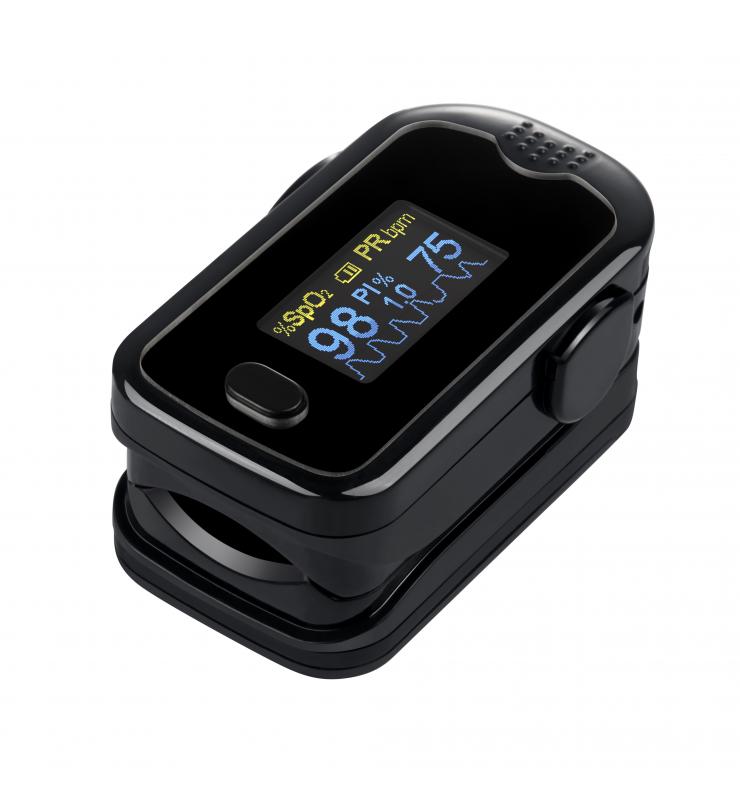

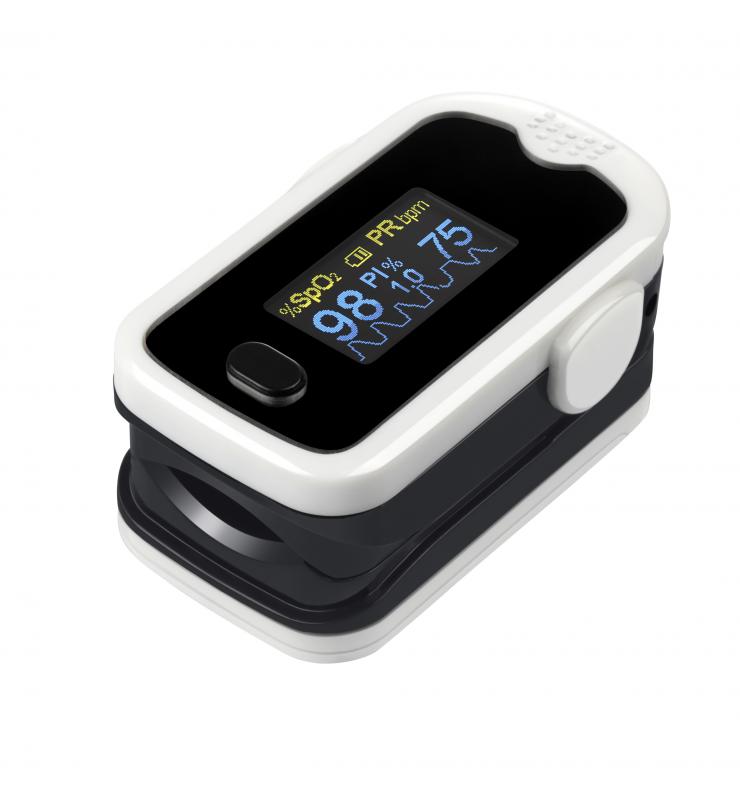

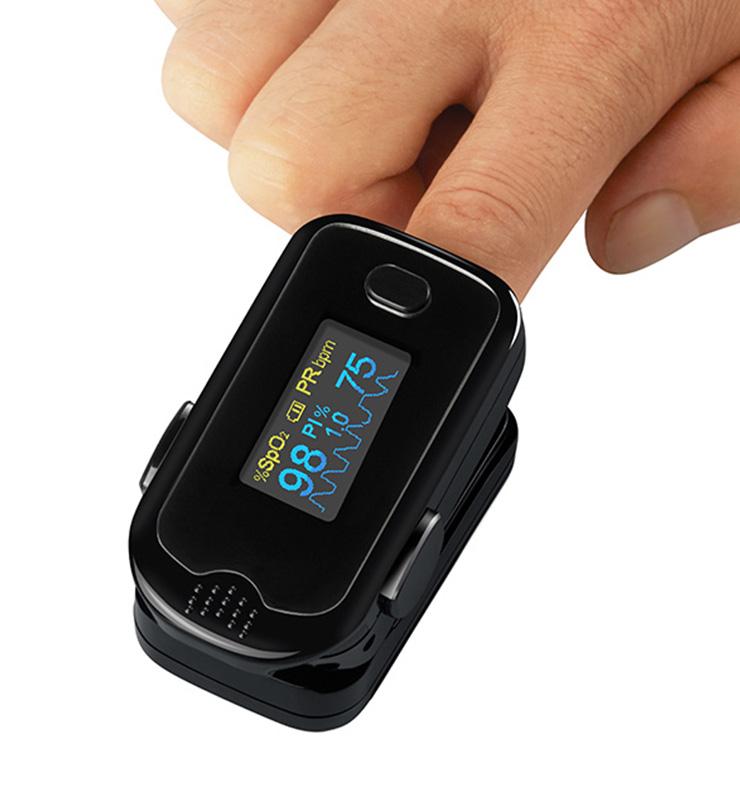

A340 Pulse Oximeter, based on all digital technology, is intended for noninvasive spot-check measurement of functional oxygen saturation of arterial hemoglobin (SpO2). Advanced DSP algorithm* can minimize the influence of motion artifact and improve measurement accuracy of low perfusion。

Feature:

Supprot 6 display modes.
Dual color OLED display
Lightweight Easy-To-Use
Visual & Sound alarm
DSP Algorith inside
Low perfusion:0.2%
Anti-movement
Adjust the parameters in friendly manu
Low Battery voltage indicator
Automatically switch off while no signal
Standard two AAA 1.5V Alkaline Bаttеrу support more than 20 hours continuous work
Optional silicon cover
With perfusion index display



Specifications:
SPO2
Measurement Range: 35-100%
Resolution: 1%
Measurement Accuracy: 2%(70%-100%)
                      Unspecified(<= 70%)
                      50%-100%
Alarm Range:  50-100%

Pulse rate Display:
Measurement Range:30-250 BPM

Resolution:
Hemoglobin Saturation:1%
Pulse rate: 1BPM
Alarm Range: 30-250BPM

Machine:
Dimensions:62.8 mm (L) x 38mm (W) x 29mm (D)
Weight -approx: 50 g(including 2 x AAA battery)
Outer box:
Dimensions:81mm(L)x60mm(w)x55mm(D)
Gross Weight: 70g
Outer carton:
Dimensions:440mm (L) X340mm (W) X290mm (H)
Gross Weight: 8.7 kg
